| Product Name： | JMS-020 Compressed Non-asbestos Rubber Sheet |
| Product describe： |

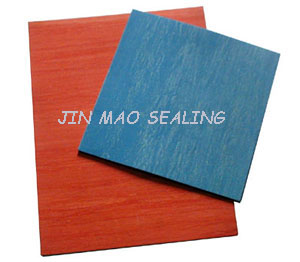

JMS-020 Compressed Non-asbestos Rubber Sheet
Non-asbestos Rubber Sheet (Compressed Non-asbestos Jointing Sheet) is Manufactured from Kevlar fiber, with oil-resistant rubber filler and compressed into sheets, these materials
are suitable for use as an oil-resistant jointing medium for heat installations and engine sealing.
Recommend size:2000 x 1500mm,1500 x1350mm,1500x1300mm,1300x2000mm
Color:Red,Blue,Green,Black etc..
Model:
1) Maximum working pressure: 100 bar
2) Minimum working temperature: 370C (blue)
3) Maximum working temperature: 400C (black)
4) Compressibility (ASTM F36): 7 - 17%
5) Recovery (DASTM 13 16Hrs-300 D.C. - 50N/mm): minimum 40%
6) Gas infiltration (DIN 3535/4): 0.5ml/min
7) Immersion test (ASTM F146)
8) Immersion in ASTM oil#3 under 5hrs/150D.C.
9) Thickness increase: 10%
10) Tensile strength: 8N/mm
11) Sulfuric acid under 48 Hrs/23D.C.
12) Density (DIN3754): 1.9g/cm3
13) PH value: 2 - 14 |
