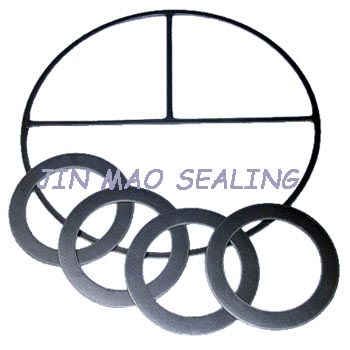

JMG-012 High-strength graphite gasket

1.Structure The high-strength gasket is composed of pressed metal sheet and flexible graphite grain after pressing and cutting.

2.Performance and Features 1.Applicable to wide range of conditions.high and low temperature resistance,corrosion resistance,and radiation resistance.Applicable to high pressure location. 2.Normal finishing requirement for flange surface which contact gasket. 3.Perfect sealing performance. 4.Low pre-tightening stress,not adhere on flange sealing surface,easy installation,and low labour force required.

3.Scope of Application 1.Working temperature:-200℃-600℃ 2.Working pressure:6.4-10.0MPa 3.Min.Pre-tightening specific pressure:y=30MPa 4.Gasket cofficient:m=2 5.Max.machinable size:~2100mm
