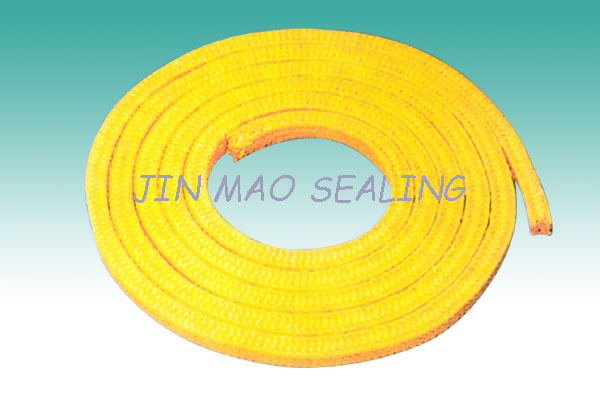

JMP-019 ARAMID (KEVLAR) BRAIDED PACKING
Kevlar fiber braided packing is made of Du Pon"s Kevlar yarn impregnated with PTFE dispersion and processed with lubricant, braided into square cross section. As the strength and module of Kevlar is as high ad the steel-like strength. So this packing compared with other kinds of braided packing they can resist more serve media and higher pressure.It can be installed separately or as end rings with other kinds of packing to combine different characteristics into packing set. ¡¡¡¡This packing is mainly used as substitute of asbestos in pump systems. Its property is better than asbestos, and it covers all the services rangs which asbestos packing provides and more. Under very bad conditions where ordinary asbestos packing can not provide the satisfied effect. But this packing has long service. It is usually applied to pulp factory, sand slurry, tin mine and feed water pump of power plant etc. Application: Max. working temperature:360¡æ Max. working pressure:25Mpa PH value:2¡«13 Density:1.4/cm3 Size:4¡Á4¡«100¡Á100mm
|
|
|
|
|
|
T¡¾¡æ¡¿ |
-100¡«360 |
|
P¡¾Kg/cm2¡¿ |
30 |
100 |
200 |
|
V¡¾m/s¡¿ |
25 |
1.5 |
2 |
|
PH |
2¡«13 | |
