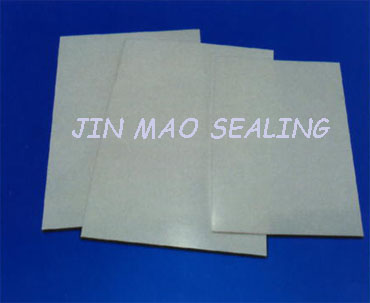

JMP-017 PTFE moulded sheet

PTFE molded sheet is manufactured by molding method with PTFE granular resin. PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from-180+260.

Applications:Lining Bearing pads, seals, and electrical insulation.

Main properties:

Properties	unit	Result
Apparent density	g/cm3	2.10-2.30
Tensile strength(min)	MPa	15.0
Ultimate elongation(min)	%	150
Dielectric strength(min)	KV/mm	10
