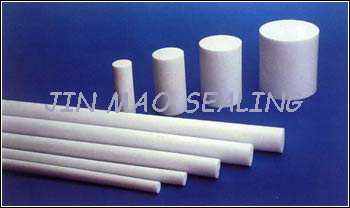

JMP-014 PTFE rod

There are two kinds of PTFE rods to offer. One is manufactured by Paste extruding method in the diameter from 4 to 9mmand the other Is made by ram extruding method is the diameter from 10to 50mm;rods Over the diameter 50mm are manufactured by moulding. PTFE is the most chemical-resistant of all known plastics. It does not age. PTFE has a wide range of practicable temperature from-180+260and a wax-like surface to which anything hardly sticks. PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

Applications:Electrical Insulation,seal,Antisticking materials.

Main properties:

Properties	unit	Result
Apparent density	g/cm3	2.10-2.30
Tensile strength (min)	MPa	14.0
Ultimate elongation (min)	%	140

Note: When the diameter of rod is larger than 16mm.only test Apparent density
