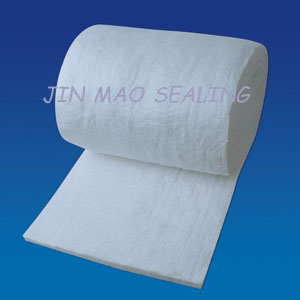

JMC-010-B Ceramic fiber blanket (Blowing)

PROCESSING： Various alumino-silicate ejecting fiber blankets are made through pro-cessing of pricking ,heat-shaping,cutting in length　and breadth,rolling etc.Aside from the same quality of corresponding type of dispersing alumino-silicate fiber cotton,all pricking blanket enjoy high quality of tensile strength,texture uniformity and plane surface. Customers have wide choice of various blanket apparent density and thickness to　obtain prime heat insulation structure and energy-saving.

WORKING TEMPERATURE: Depending on condition of use,types of heat resource and ambiance.

TECHNICAL　SPECIALITY： Low heat-conduction ratio and thermal capacity High quality of stability and thermal shock resistance High quality of tensile strength High quality of heat insulation,fireproofing and sound-absorbabilty.

APPLICATIONS: Lining of stove,heating equipments and high-temperature pipeline Electric boiler,gas engine and heat insulation of nuclear power Lining of high-temperature reacting and heating equipments in chemi-cal engineering Heat insulation of kiln door and cover Fireproofing and heat insulation of high building Material for high-temperature filtrating

Product name Item		COM	ST	HP	HAA	HZ
Categorize the temperature(℃)		1100	1260	1260	1360	1430
The work temperature(℃)		< 1000	1050	1100	1200	1350
The color		white	pure	pure	pure	pure
Physical volume density(kg/m3)		96 128	96 128	96 128	128 160	128 160
Permanent line constringency(%)( heat preservation 24 hours, physical volume density 128/ m3)		－4 (1000℃)	－3 (1000℃)	－3 (1100℃)	－3 (1250℃)	-3 (1350℃）
Each temperature descend transmit heat the coefficient( w/ m.k)( physical volume density 128 kgs/ m3)		0.09(400℃) 0.16(800℃)	0.09(400℃) 0.16(800℃)	0.09(400℃)0.16(800℃) 0.20(1000℃)	0.12(600℃) 0.20(1000℃)	0.16(800℃) 0.20(1000℃)
The anti- pulls the strength( MPa) ( Physical volume density 128 kgs/ m3)		0.04	0.04	0.04	0.04	0.04
The chemistry constitute(%)	AL2O3	40-44	45-46	47-49	52-55	39-40
	AL2O3+SIO2	95-96	96-97	98-99	99	-
	AL2O3+SIO2+ZrO2	-	-	-	-	99
	ZrO2	-	-	-	-	15-17
	Fe2O3	<1.2	<1.0	0.2	0.2	0.2
	Na2O+K2O	≤0.5	≤0.5	0.2	0.2	0.2
SIZE(mm)		In common use specification:7200×610×10-50；Other specifications manufacture according to the customer request.
