Product Name£ºJMC-012 Ceramic fiber paper
Product describe£º

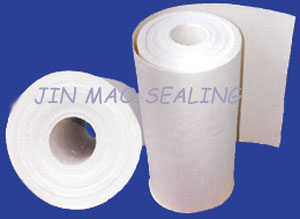

JMC-012 Ceramic fiber paper

PROCESSION£º On the base of traditional process of paper making and paper machinry,the mechanical product line of wet inorganic ceramic fiber paper is developed and established. With the special ceramic fiber as raw material which contains littls residue sphere,the high quality paper is made through slurrying,removing residue,mixing slurry,long-mesh shaping,vacuum dehydrating,drying,cutting and rolling etc.

TCEHNICAL¡¡SPECIALITY£º Low coefficient of heat-conduction ratil Low thermal capacity Thermal shock resistance High quality of flexility and tear resistance Not include adbestos,erosion resistance,not act with alu-minium liquid High quality of insusation and sound insulation Easiness of mechanical processing Tough texture and high quality of compression resistance

APPLOCATON£º Insulation,seal and safety materials for industrial need Insulation and heat insulation meterials for electrothermal equipments Insulation and heat insulation materials for appatatus,equip-ments and electrothermal components Heat insulation materials for automobile
Products code
JMC-012A
JMC-012B
Categorised temperature¡æ
1260
1260
Density of volume(kg/m3)
170¡À15
170¡À15
Content of organic matter
6£­8
6£­8
Coefficient that heat conduct under average temperature
200¡æ
0.075-0.085
400¡æ
0.115-0.121
600¡æ
0.165-0.175

Main chemical compositions (%)

AL2O3
47-49
47-49
AL2O3+SI2O3
98-99
98-99
Standard specification of the prcducts

Thickness0.5¡«6 Width610/1220 length120m¡«80m The special specification can be made to order according to user's enquiry¡¡

The above data are average measured according to the check means stipulated by National Standards,but do not stand for quality assurance data of the products.
